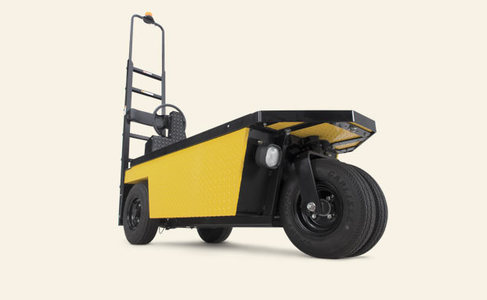

Cushman Stock Chaser
BODY & CHASSIS
| Frame | Welded Steel with DuraShield™ Powder Coat |
|---|---|
| Body & Finish | Diamond Plate Poly Primer & Acrylic |
| Standard Color | Safety Yellow |
DIMENSIONS
| Overall Length | 88.4 in (225 cm) |
|---|---|
| Overall Width | 29.5 in (75 cm) |
| Overall Height | 48.0 in (122 cm) (w/o Ladder) 78.0 in (198 cm) (w/ 4-step Ladder) 97.0 in (246 cm) (w/ 6-step Ladder) |
| Wheel Base | 48.3 in (123 cm) |
| Wheel Track | 24.75 in (63 cm) Rear |
| Ground Clearance | 4.0 in (10 cm) |
| Cargo Deck Capacity | 9.6-sq-ft |
| Cargo Deck Material | Plywood |
PERFORMANCE
| Seating Capacity | 1 Person (Standing) |
|---|---|
| Curb Weight | 810 lb (367 kg) |
| Vehicle Load Capacity | 1000 lb (454 kg) |
| Bed Load Capacity | 750 lb (340 kg) |
| Towing Capacity | Normal Draw Bar: 60 lb (27.2 kg) Max Draw Bar Pull: 715 lb (324 kg) |
| Outside Clearance Circle | 12.4 ft (3.8 m) |
| Speed | 8.5 mph max (13.7 kph max) |
STEERING & SUSPENSION
| Steering | Direct Chain & Linkage |
|---|---|
| Suspension | Solid (Front & Rear) |
| Service Brake | Rear Wheel Mechanical Drum |
| Parking Brake | Automatic |
| Tires | 4.80 X 8 (Load Range B) |
Details
The Stock Chaser is built to carry more of everything.
The vast cargo deck built into the Stock Chaser’s slim design makes it the ideal vehicle for transporting inventory throughout the cramped aisles of warehouses, distribution centers and manufacturing facilities. And when you’re not moving product, it serves as excellent maintenance support, carrying large tools and parts with ease.
- 9.6-sq-ft cargo deck
- 1,000-lb payload
- Optional 4- or 6-step ladder
- Equipment Type
- Stock Chasers / Industrial Vehicles and Personnel Carriers
