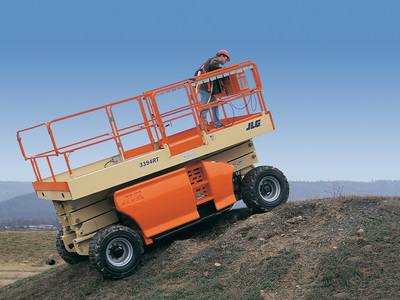

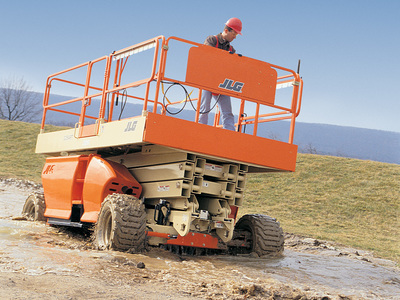

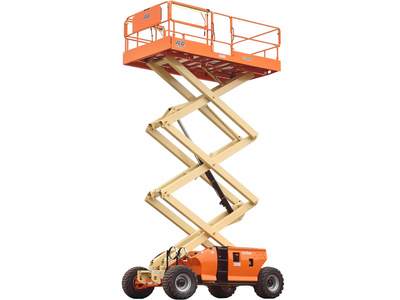

JLG 3394RT

  Back to Inventory
  • Larger platform and increased lift capacity
  • Optional one-touch leveling jacks for quicker setup
  • Maximum lift and lower time of 43 seconds gives you more time to get your work done
  • Equipped with a fuel-efficient Tier 4 engine
  • New twin-pump-powered 4WD for a higher level of performance over rough terrain
  • Capacity – Fuel Tank: 30 gal. / 113.56 L
  • Capacity – Hydraulic Reservoir: 32 gal. / 121.13 L
  • Drive Speed – Platform Elevated: 0.50 mph / 0.80 km/h
  • Drive Speed – Platform Lowered: 4 mph / 6.44 km/h
  • Engine Type – Diesel: DEUTZ T4F D2.9L4 48.8 hp
  • Engine Type – Dual Fuel: GM Vortec 3000 MPR 82hp
  • Gradeability: 45 %
  • Ground Clearance: 1 ft / 0.3 m
  • Lift Time: 30 sec.
  • Lower Time: 30 sec.
  • Machine Height: 8 ft 9 in. / 2.67 m
  • Machine Height – Rails Folded: 6 ft 6 in. / 1.97 m
  • Machine Length: 12 ft 8 in. / 3.86 m
  • Machine Weight: 11910 lb / 5402.29 kg
  • Machine Width: 7 ft 10 in. / 2.39 m
  • Maximum Drive Height: 33 ft / 10.06 m
  • Maximum Lift Height: 33 ft / 10.06 m
  • Platform Capacity: 2250 lb / 1020.58 kg
  • Platform Capacity – Extension: 500 lb / 226.80 kg
  • Platform Dimension A: 12 ft 6 in. / 3.81 m
  • Platform Dimension B: 7 ft 2 in. / 2.18 m
  • Platform Extension Length: 4 ft / 1.22 m
  • Platform Height: 33 ft / 10.06 m
  • Platform Height: 33 ft / 10.06 m
  • Platform Height – Lowered: 5 ft 2 in. / 1.57 m
  • Platform Railing Height: 3 ft 8 in. / 1.1 m
  • Tire Size: 33 x 15.5 Superwide
  • Turning Radius – Outside: 19 ft 6 in. / 5.93 m
  • Wheelbase: 9 ft 8 in. / 2.95 m
Details

JLG® engine powered scissor lifts are chosen for applications that require more workspace and more lifting capacity. The RT Series and MRT Model both provide a larger work area and generally higher load capacities than boom lifts. Both deliver exceptional terrainability and gradeability, making it easier to maneuver through the roughest job sites.

Equipment Type
Scissor Lifts / Aerial Equipment
