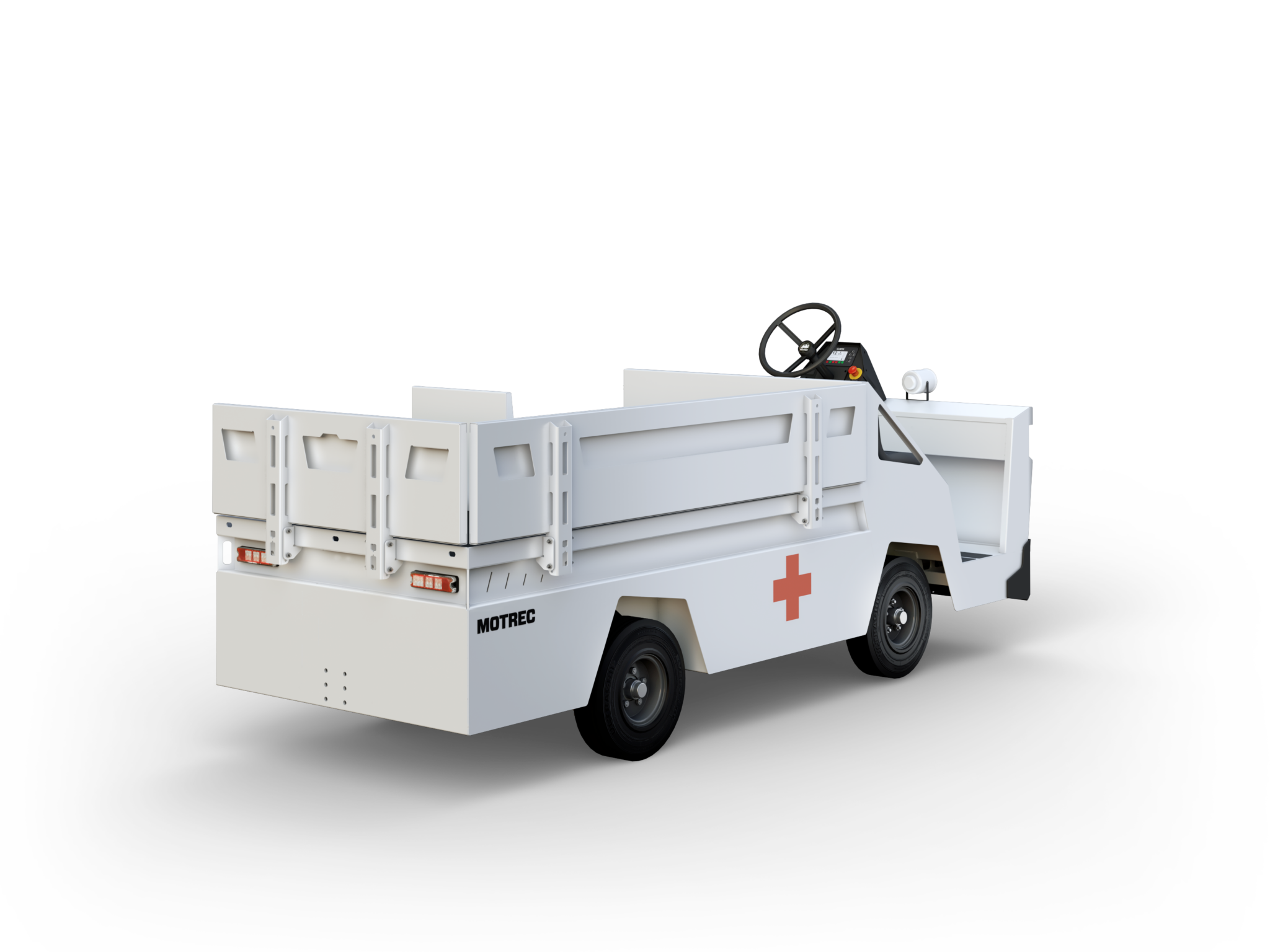

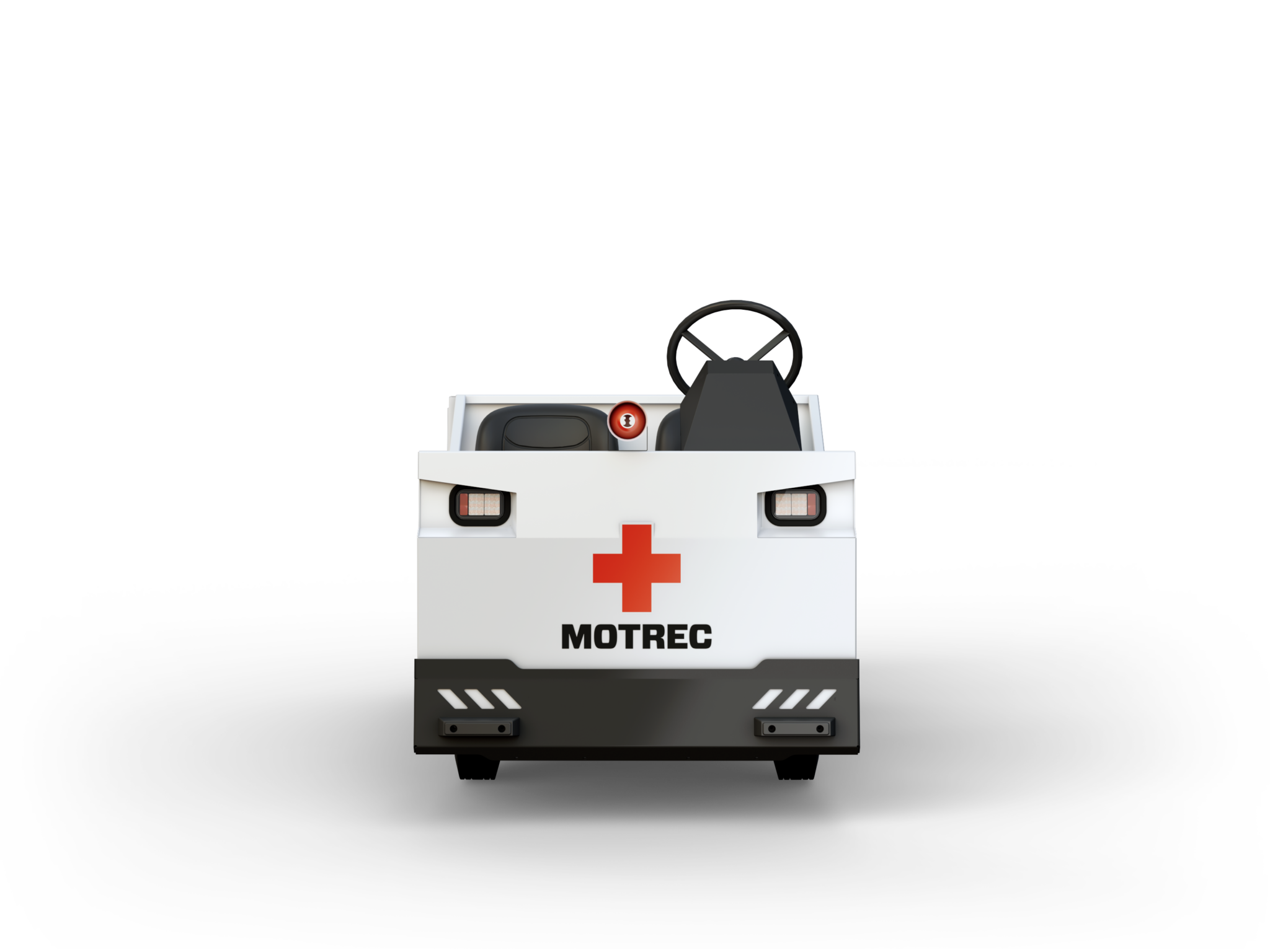

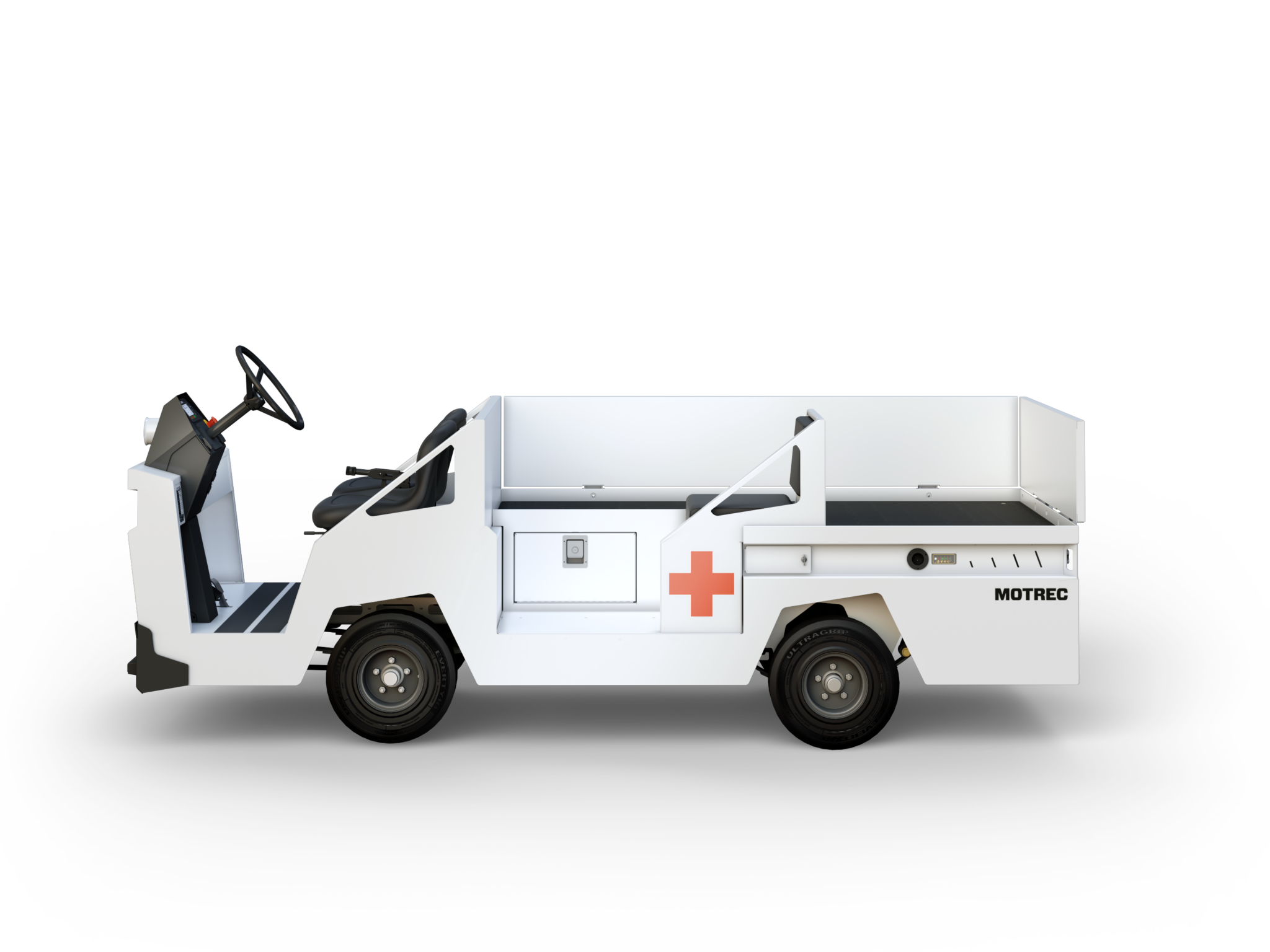

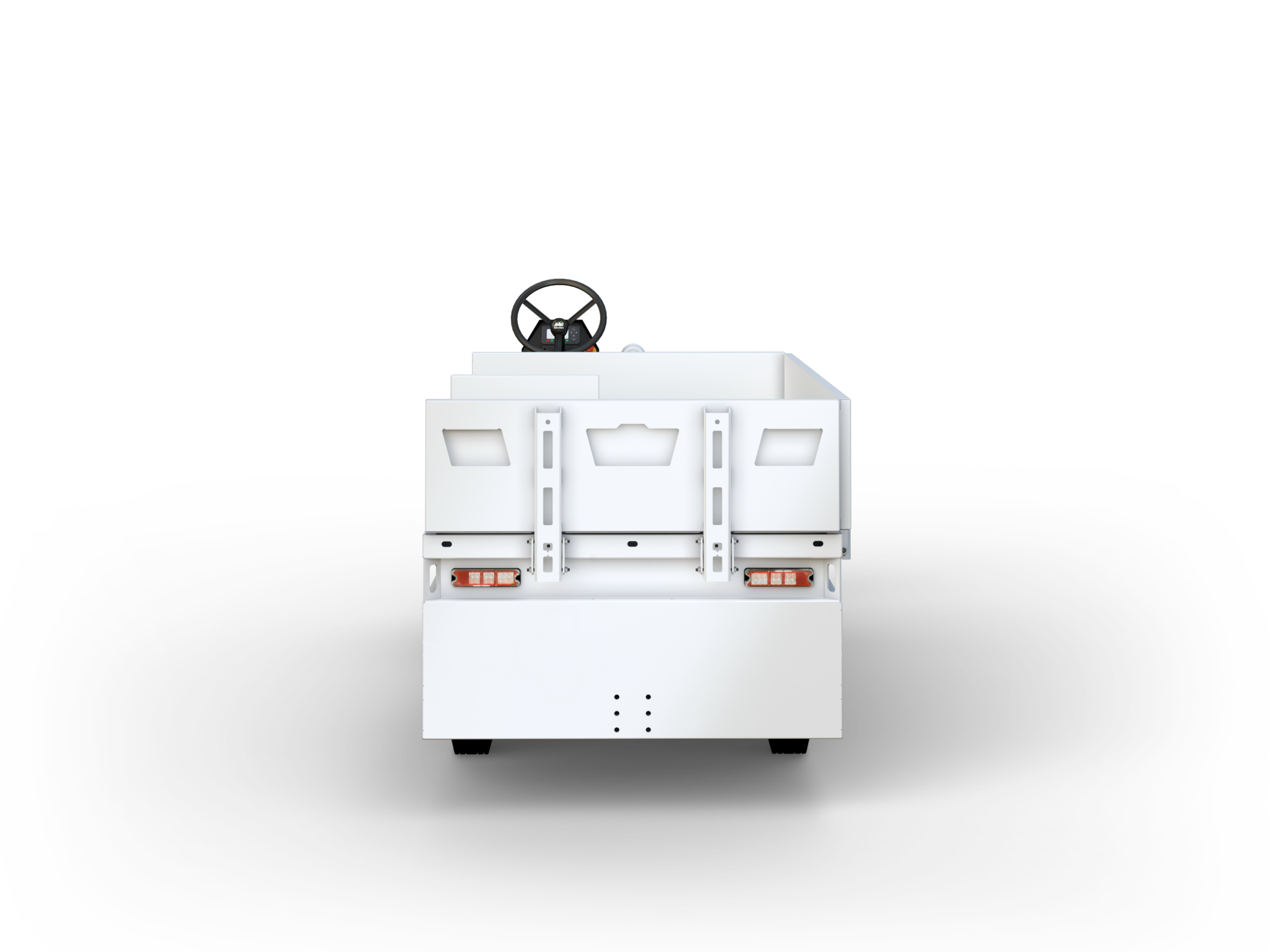

Motrec MX-480 Ambulance
- Passengers: 3
- Loading Capacity: 2000
- Towing Capacity: 6000
- Speed MPH: 10
- Turning Radius: 139
- Accessories: Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator
- Safety: Deadman seat switch, reverse alarm, horn, automatic parking brake
- Seats: Two bucket seats on slide adjusters
- Steering: Automotive steering wheel, tilted steering column
- Suspension: Dual leaf springs on front and rear
- Transmission: Direct Drive
- Voltage: 48
- Motor: Brushless AC motor, 15 HP Max (9 HP Continuous)
- Lights: LED dual headlights & tail/brake lights, dual back-up lights
- Indicators: Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
- Battery: Eight 6V-225AH batteries
- Body: All-steel unibody construction. Powder Coating.
- Brakes: Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking
- Charger: High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic.
- Controller: AC Electronic speed controller
- Drive Axle: Helical gear differential
- Deck Length: 82
- Deck Width: 44
- Vehicle Height: 54
- Vehicle Length: 130
- Vehicle Width: 44
- Wheel Base: 65
Details
Rescue people anywhere, quickly and safely. With its integrated nurse seat, hinged sides and first aid compartment, the MX-480 Ambulance makes a great turnkey solution. Its short turning radius and impressive maneuverability are ideal for confined settings. The long list of options include electric siren, red strobe light, second storage compartment, multi-level cot and IV pole. This zero-emission vehicle can also be equipped with top, windshield and roll-up sides for all-weather protection. Fully customizable and brandable.
- Equipment Type
- Industrial Vehicles and Personnel Carriers
