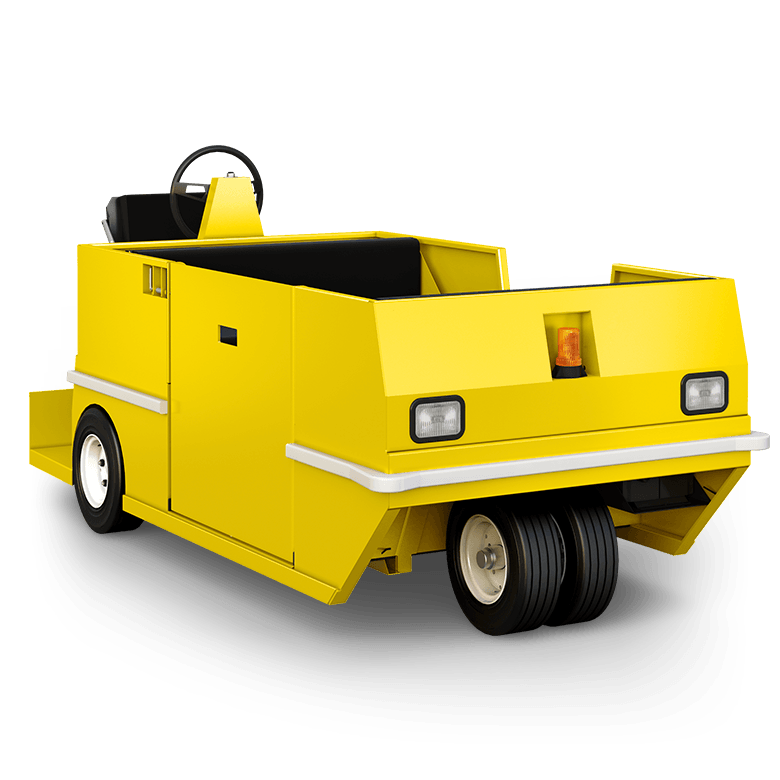

Motrec MP-420 36V
- Code: MP - 420 - 36V
- Passengers: 5
- Loading Capacity: 1700
- Towing Capacity: 4000
- Speed MPH: 8
- Speed KPH: 13
- Turning Radius: 90
- Standards: Conforms to UL 583 type E and ANSI B56.8
- Performance Notes: Includes passenger weight of 200 lbs. Specifications and standard equipment are subject to change without notice.
- Accessories: Horn, 36V/12V converter to equalize cells and extend battery life
- Safety: Reverse alarm, strobelight
- Seats: Padded backrest for operator, bench seating for four passengers
- Steering: Automotive steering wheel
- Suspension: Rigid axles on front and rear
- Transmission: Dual V-belt drive
- Voltage: 36
- Wheels: 4.80 x 8 LRC pneumatic tires
- Motor: 10 hp
- Lights: Dual LED headlights
- Indicators: Battery status indicator
- Battery: Six 6V-225AH batteries
- Brakes: Dual self-adjusting mechanical drum brakes on rear, deadman brake on control treadle, regenerative braking
- Charger: 25 Amp, built-in automatic
- Color: Security orange or federal yellow
- Controller: Electronic speed controller
- Drive Axle: Differential with automotive ring gear
- Vehicle Height: 49
- Vehicle Length: 104
- Vehicle Width: 47
- Wheel Base: 66
- Loading Capacity: 1700
- Wheels: 4.80 x 8 LRC pneumatic tires
Details
This quiet, zero-emission vehicle is designed for transporting up to four passengers quickly and safely. It features two comfortable benches with padded backrests, a dual-sided entry with optional wheelchair-accessible fold-down ramps, and a rear platform large enough for several items of luggage. Stand-up operators enjoy good visibility and face passengers, making interacting easier, safer and much more enjoyable. The light-touch accelerator pedal further reduces operator fatigue. ADA compliant.
- Equipment Type
- Industrial Vehicles and Personnel Carriers / Burden and Personnel Carriers
