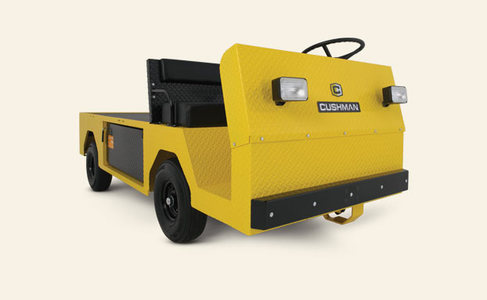

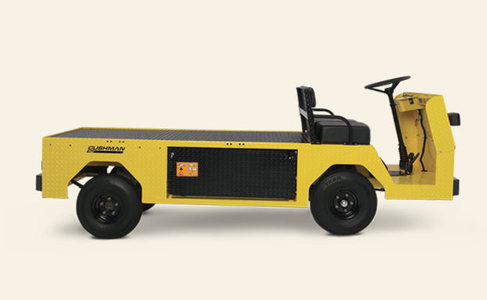

Cushman TITAN HD
- Batteries: Six, 6 Volt Deep Cycle, Swing Out Batteries
- Batteries: Eight, 6V Deep Cycle, Swing Out
- Battery Charger: 36-Volt On-Board, 120 VAC, UL & CSA
- Battery Charger: 48-Volt On-Board, Delta Q 120 VAC, UL/CSA
- Body and Finish: Diamond Plate. Epoxy Primer + Polyester Topcoat
- Body and Finish: Diamond Plate. Epoxy Primer + Polyester Topcoat
- Cargo Deck Length: 75.0 in (191 cm)
- Cargo Deck Length: 75.0 in (191 cm)
- Cargo Deck Load Capacity: 2200 lb (1000 kg)
- Cargo Deck Load Capacity: 2200 lb (1000 kg)
- Cargo Deck Width: 41.5 in (105 cm)
- Cargo Deck Width: 41.5 in (105 cm)
- Curb Weight: 1410 lb (640 kg)
- Curb Weight: 1720 lb (780 kg)
- Drivetrain: Motor Shaft Direct Drive
- Drivetrain: Motor Shaft Direct Drive
- Dry Weight: 1040 lb (475 kg)
- Dry Weight: 1225 lb (560 kg)
- Electrical System: 36-Volt DC
- Electrical System: 48-Volt
- Frame: Welded Steel with Powder-Coat
- Frame: Welded Steel with Powder-Coat
- Front and Rear Tires: 5.70 x 8 (Load Range C)
- Front and Rear Tires: 5.70 x 8 (Load Range C)
- Front Suspension: Independent, Transverse Leaf Spring, Shocks
- Front Suspension: Independent, Transverse Leaf Spring, Shocks
- Front Wheel Track: 38 in (96 cm)
- Front Wheel Track: 38 in (96 cm)
- Gear Selection: Dash-Mounted Forward-Neutral-Reverse
- Gear Selection: Dash-Mounted Forward-Neutral-Reverse
- Ground Clearance: 4.75 in (12 cm)
- Ground Clearance: 4.75 in (12 cm)
- Horsepower: 8.0 hp (6 kW) @ 1600 rpm
- Horsepower: 15.2 hp (11.3 kW) @ 1600 rpm
- Intersecting Aisle Clearance: 84.0 in (213 cm)
- Intersecting Aisle Clearance: 84.0 in (213 cm)
- Key or Pedal Start: Pedal Start
- Key or Pedal Start: Pedal Start
- Outside Clearance Circle: 22.0 ft (6.7 m)
- Outside Clearance Circle: 22.0 ft (6.7 m)
- Overall Height: 47.0 in (119 cm)
- Overall Height: 47.0 in (119 cm)
- Overall Height with optional cab: 72.0 in (183 cm)
- Overall Height with optional cab: 72.0 in (183 cm)
- Overall Length: 114.0 in (290 cm)
- Overall Length: 114.0 in (290 cm)
- Overall Width: 44.5 in (113 cm)
- Overall Width: 44.5 in (113 cm)
- Parking Brake: Hand Operated Mechanical
- Parking Brake: Hand Operated Mechanical
- Power source: 36-Volt DC
- Power Source: 48-Volt DC
- Rear Axle Ratio: 14.76:1
- Rear Axle Ratio: 14.76:1
- Rear Suspension: Leaf Springs & Shock Absorbers
- Rear Suspension: Leaf Springs & Shock Absorbers
- Rear Wheel Track: 37 in (94 cm)
- Rear Wheel Track: 37 in (94 cm)
- Seating Capacity and Style: 2-person
- Seating Capacity and Style: 2-person
- Service Brake: Rear Wheel Hydraulic Drum, Front Optional
- Service Brake: Rear Wheel Hydraulic Drum, Front Optional
- Speed (level ground): 13 mph +/- 0.5 mph (21 kph +/- 0.8 kph)
- Speed (level ground): 13 mph +/- 0.5 mph (21 kph +/- 0.8 kph)
- Speed Controller: Solid State 400 Amp Rated
- Speed Controller: Solid State 400 Amp Precision Drive System
- Standard Color: Safety Yellow
- Standard Color: Safety Yellow
- Steering: Rack and Pinion
- Steering: Rack and Pinion
- Transaxle: Differential with Helical Gears
- Transaxle: Differential with Helical Gears
- Vehicle Load Capacity: 2500 lb (1135 kg)
- Vehicle Load Capacity: 2500 lb (1135 kg)
- Wheel Base: 67.0 in (170 cm)
- Wheel Base: 67.0 in (170 cm)
Details
This worker can shoulder any load.
Available with both 36- and 48-volt
powertrains, the Titan HD knows a thing
or two about work ethic. And with
increased cargo and towing capacities, this
is one work vehicle that never backs away
from the big jobs.
- 2- passenger models
- 21.6-sq-ft, 3,000-lb capacity cargo bed
- 4,600-lb towing capacity
- Equipment Type
- Industrial Vehicles and Personnel Carriers / Burden and Personnel Carriers
