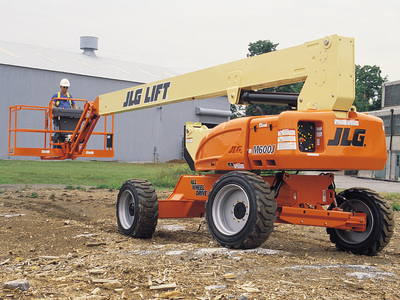

JLG M600J

  Back to Inventory
  • Environmentally friendly – zero emissions, reduced noise and standard non-marking tires
  • Productivity – work longer with longer duty cycles
  • Maneuverability – move over uneven surfaces with Automatic Traction Control
  • Highest electric boom in the industry
  • Batteries: 8 x 6V, 415 amp-hr
  • Capacity – Hydraulic Reservoir: 15 gal. / 56.78 L
  • Drive Speed – Platform Lowered: 3 mph / 4.83 km/h
  • Electrical System: 48 Volts DC
  • Generator / Engine – Brand: Kubota
  • Generator / Engine – Fuel Tank Capacity: 13 gal. / 49.21 L
  • Generator / Engine – Fuel Type: Diesel
  • Generator / Engine – Horsepower / Kilowatts: 7 hp / 5 kW
  • Gradeability – 2WD: 30 %
  • Gradeability – 4WD: 45 %
  • Ground Clearance: 1 ft / 0.3 m
  • Horizontal Jib Rotation: 0 Degrees
  • Horizontal Outreach: 43 ft 3 in. / 13.18 m
  • Jib – Range of articulation: 145 Degrees
  • Machine Height: 8 ft 4 in. / 2.54 m
  • Machine Length: 30 ft 9 in. / 9.37 m
  • Machine Weight: 15500 lb / 7030.68 kg
  • Machine Width: 7 ft 11 in. / 2.41 m
  • Platform Capacity: 500 lb / 226.80 kg
  • Platform Dimension A: 2 ft 6 in. / 0.76 m
  • Platform Dimension B: 6 ft / 1.83 m
  • Platform Height: 60 ft 3 in. / 18.36 m
  • Platform Height: 60 ft 3 in. / 18.36 m
  • Swing: 400 Degrees
  • Swing Type: Non-Continuous
  • Tailswing: 4 ft / 1.22 m
  • Tire Size: 36 x 14-22.5 Non-marking Pnuematic
  • Turning Radius – Outside: 15 ft 4 in. / 4.67 m
  • Wheelbase: 9 ft / 2.74 m
Details

Reach up to 60 ft with the E600 Series, which is available in several configurations. Choose from electric or hybrid, standard jib or horizontally pivoting jib with JibPLUS®, two wheel drive or all wheel drive. Whether your jobs include industrial applications, maintenance, construction or anything in between, the E600 Series delivers zero emissions and reduced noise levels for operation on most any terrain in many environments.

Equipment Type
Aerial Equipment / Telescopic Boom Lifts
