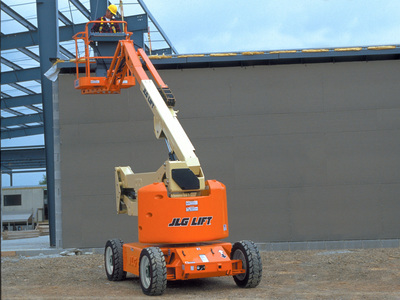

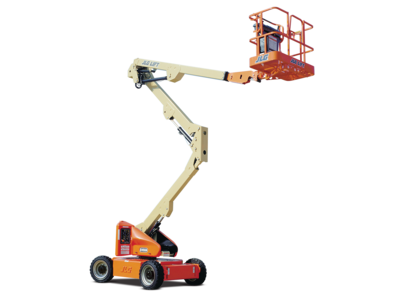

JLG E450A
- Accessibility – up and over access, optional jib
- Maneuverability – move over uneven surfaces with Automatic Traction Control
- Environmentally friendly – zero emissions
- Productivity – work longer with longer duty cycles
- Batteries: 8 x 6V, 370 amp-hr
- Capacity – Hydraulic Reservoir: 4 gal. / 15.14 L
- Drive Speed – Platform Lowered: 3.20 mph / 5.15 km/h
- Electrical System: 48 Volts DC
- Gradeability – 2WD: 30 %
- Ground Clearance: 9 in. / 0.22 m
- Horizontal Jib Rotation: 0 Degrees
- Horizontal Outreach: 23 ft 1 in. / 7.04 m
- Jib – Range of articulation: 0 Degrees
- Machine Height: 6 ft 6 in. / 1.98 m
- Machine Length: 19 ft 1 in. / 5.82 m
- Machine Weight: 12600 lb / 5715.26 kg
- Machine Width: 5 ft 9 in. / 1.75 m
- Platform Capacity: 500 lb / 226.80 kg
- Platform Capacity – Unrestricted: 500 lb / 226.80 kg
- Platform Dimension A: 2 ft 6 in. / 0.76 m
- Platform Dimension B: 5 ft / 1.52 m
- Platform Height: 45 ft / 13.72 m
- Platform Height: 45 ft / 13.72 m
- Swing: 360 Degrees
- Swing Type: Non-Continuous
- Tailswing: Zero
- Tire Size: 240/55-17.5 Pnuematic
- Turning Radius – Outside: 10 ft 4 in. / 3.15 m
- Up and Over Height: 24 ft 7 in. / 7.49 m
- Wheelbase: 6 ft 7 in. / 2.01 m
Details
Today, more people are demanding environmentally friendly equipment. And more municipalities are requiring “green” building for new construction and renovations. The JLG line of electric boom lifts feature longer run time, greater uptime and higher productivity. These machines are specifically designed so you have fewer scheduled services, a quieter work area, less dependency on hydraulic oils and zero emissions.
- Equipment Type
- Aerial Equipment / Articulating Boom Lifts
