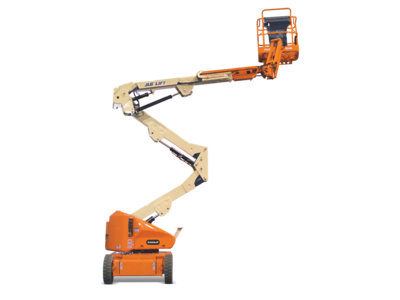

JLG E400AN

  • Environmentally friendly – zero emissions
  • Accessibility – up and over access, optional jib
  • Productivity – work longer with longer duty cycles
  • Maneuverability – move over uneven surfaces with Automatic Traction Control
  • Batteries: 8 x 6V, 370 amp-hr
  • Capacity – Hydraulic Reservoir: 4 gal. / 15.14 L
  • Drive Speed – Platform Lowered: 3 mph / 4.83 km/h
  • Electrical System: 48 Volts DC
  • Gradeability – 2WD: 30 %
  • Ground Clearance: 5 in. / 0.13 m
  • Horizontal Jib Rotation: 0 Degrees
  • Horizontal Outreach: 21 ft 2 in. / 6.45 m
  • Jib – Range of articulation: 0 Degrees
  • Machine Height: 6 ft 6 in. / 1.97 m
  • Machine Length: 18 ft 1 in. / 5.51 m
  • Machine Weight: 13100 lb / 5942.06 kg
  • Machine Width: 4 ft 11 in. / 1.5 m
  • Platform Capacity: 500 lb / 226.80 kg
  • Platform Capacity – Unrestricted: 500 lb / 226.80 kg
  • Platform Dimension A: 2 ft 6 in. / 0.76 m
  • Platform Dimension B: 4 ft / 1.22 m
  • Platform Height: 40 ft / 12.19 m
  • Platform Height: 40 ft / 12.19 m
  • Swing: 360 Degrees
  • Swing Type: Non-Continuous
  • Tailswing: 4 in. / 0.1 m
  • Tire Size: 22 x 6 x 17.75 Non-marking (F), 25 x 7 x 12 Non-marking (R)
  • Turning Radius – Outside: 10 ft 4 in. / 3.15 m
  • Up and Over Height: 21 ft 6 in. / 6.55 m
  • Wheelbase: 6 ft 7 in. / 2.01 m
Details

Today, more people are demanding environmentally friendly equipment. And more municipalities are requiring “green” building for new construction and renovations. The JLG line of electric boom lifts feature longer run time, greater uptime and higher productivity. These machines are specifically designed so you have fewer scheduled services, a quieter work area, less dependency on hydraulic oils and zero emissions.

Equipment Type
Articulating Boom Lifts / Aerial Equipment
