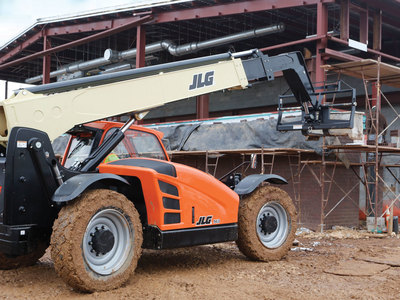

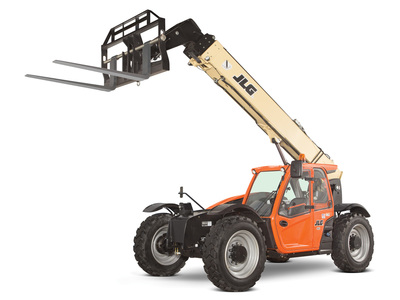

JLG 943

  Back to Inventory
  • Enhanced operator comfort—spacious cab, intuitive single joystick and integrated arm rest
  • Increased versatility—expanded attachment offering includes pipe grapple, trash hopper and material handling arm
  • Maximum serviceability—external telescope cylinder and easily accessible filters and parts
  • Greater operator confidence—Stabil-Trak rear axle stabilization, new reverse sensing system, reversing camera and better visibility from the cab
  • Axle-Front: High Bias, Limited Slip
  • Axle-Rear: Planetary
  • Capacity – Fuel Tank: 38 gal. / 144.98 L
  • Drawbar Pull: 22751 lb / 10319.68 kg
  • Engine Horsepower: 110 hp / 82.06 kW
  • Engine Manufacturer: Cummins
  • Engine Model: QSF3.8L Tier 4 Final
  • Frame Leveling: 10 Degrees
  • Function Pump Type: Load Sensing Piston
  • Ground Clearance: 1 ft 5 in. / 0.43 m
  • Lift Capacity at Full Height: 7000 lb / 3175.15 kg
  • Lift Capacity at Max Reach (Stabs Up): 1200 lb / 544.31 kg
  • Load Center: 2 ft / 0.61 m
  • Machine Height: 8 ft 2 in. / 2.49 m
  • Machine Length: 19 ft 9 in. / 6.02 m
  • Machine Width: 8 ft 1 in. / 2.46 m
  • Maximum Engine RPM: 1500 rpm
  • Maximum Lift Capacity: 9000 lb / 4082.33 kg
  • Maximum Lift Height: 43 ft / 13.11 m
  • Maximum Reach: 30 ft 5 in. / 9.27 m
  • Operating Vehicle Weight: 24912 lb / 11299.89 kg
  • Outriggers or Stabilizers: No
  • Outside Turning Radius: 12 ft / 3.66 m
  • Service Brake Type: Wet Multi-Disc
  • Speed – Maximum Lift: 13 sec.
  • Speed – Maximum Lower: 9 sec.
  • Speed – Maximum Telescope In: 13 sec.
  • Speed – Maximum Telescope Out: 15 sec.
  • Speed – Maximum Travel: 19 mph / 30.58 km/h
  • Tire Size: 370/75-28
  • Transmission – Nr Forward Gears Standard: 4
  • Transmission – Nr Reverse Gears: 3
  • Transmission Type: Powershift
  • Wheelbase: 11 ft 3 in. / 3.43 m
Details

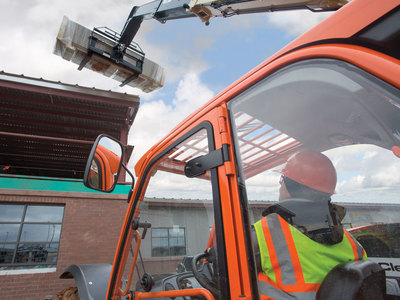

Comfort. Confidence. Serviceability. We wouldn’t expect you to settle for anything less with JLG telehandlers. The redesigned cab features an intuitive single joystick and an integrated arm rest so you can work in greater comfort. While the rear axle stabilization system and optional reversing camera allow for more confidence when placing loads. Tier 4 Final engines are fuel-efficient with less environmental impact. And engine parts and other serviceable components are more easily accessible—so you can spend more time on the job and less time on routine maintenance. Take a virtual tour of the JLG telehandlers.

Equipment Type
Aerial Equipment / Telehandlers
