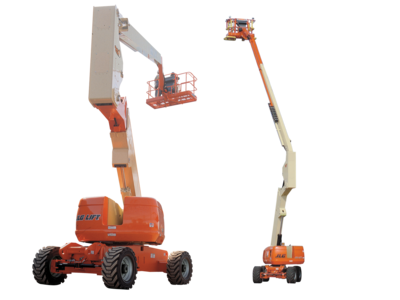

JLG 740AJ

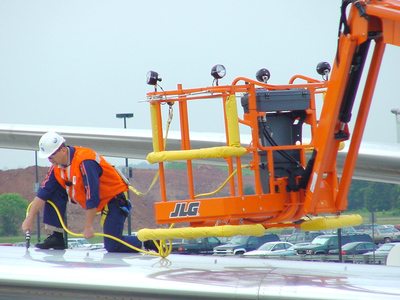

  • With the Fall Arrest system, you can move 270 degrees around and 6 ft beyond the platform

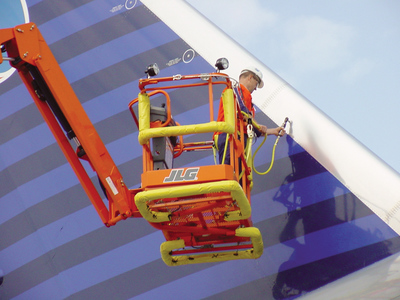

  • Made specifically for working on today’s aircraft

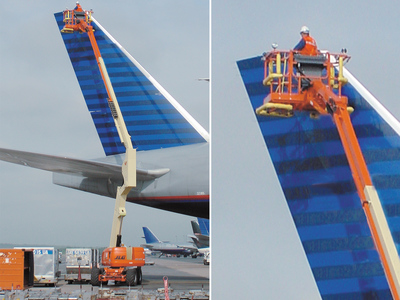

  • Articulating jib allows you to reach all external surfaces of any aircraft made today
  • Auxiliary Power: 12 Volts DC
  • Axle Oscillation: 0 in. / 0 mm
  • Capacity – Fuel Tank: 40 gal. / 151.42 L
  • Capacity – Hydraulic Reservoir: 48 gal. / 181.70 L
  • Drive Speed – 4WD: 3 mph / 4.83 km/h
  • Engine Type – Diesel: DEUTZ TD 2.9L Tier 4 Final 67 hp
  • Engine Type – Dual Fuel: GM Vortec 3000 MPR 82 hp
  • Gradeability – 4WD: 45 %
  • Ground Clearance: 1 ft / 0.3 m
  • Horizontal Jib Rotation: 0 Degrees
  • Horizontal Outreach: 51 ft 10 in. / 15.8 m
  • Jib – Range of articulation: 130 Degrees
  • Machine Height: 9 ft 10 in. / 3 m
  • Machine Length: 36 ft 6 in. / 11.13 m
  • Machine Weight: 36200 lb / 16420.04 kg
  • Machine Width: 8 ft 2 in. / 2.49 m
  • Platform Capacity – Unrestricted: 500 lb / 226.80 kg
  • Platform Dimension A: 3 ft / 0.91 m
  • Platform Dimension B: 6 ft / 1.83 m
  • Platform Height: 74 ft / 22.56 m
  • Platform Height: 74 ft / 22.56 m
  • Swing: 360 Degrees
  • Swing Type: Continuous
  • Tailswing: 2 ft 6 in. / 0.76 m
  • Tire Size: 445/55D19.5 Foam-Filled Wide Lug Tread
  • Turning Radius – Outside (4WS): 14 ft 6 in. / 4.42 m
  • Up and Over Height: 25 ft 1 in. / 7.65 m
Details

On the job site, days are measured by productivity. Your productivity. Which means you need equipment that stands up to the day’s demands. JLG® engine powered articulating boom lifts give you the extra reach you need to work over and around obstacles on the job site. They offer exceptional outreach, high capacity, versatile performance and easy maintenance. Larger work envelopes provide you with access to those hard-to-reach places.

Equipment Type
Articulating Boom Lifts / Aerial Equipment
