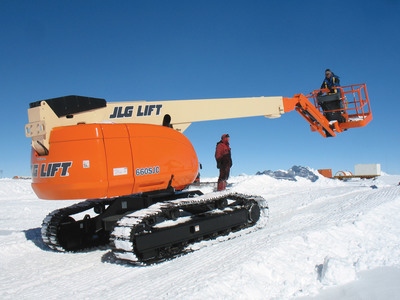

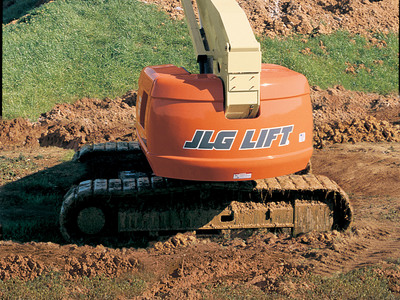

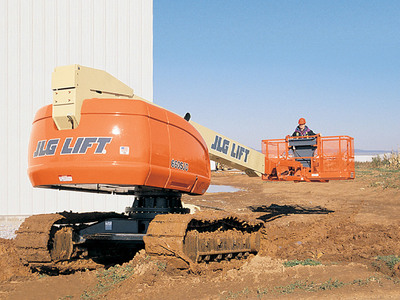

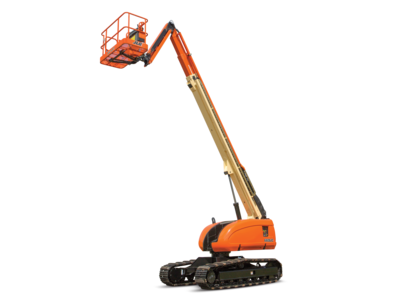

JLG 660SJC

  Back to Inventory
  • Single drive / steer joystick for one-handed operation
  • Zero turning radius to get around the jobsite easier
  • For your toughest jobs and terrains, the 600 Crawler Series provides the mobility you need
  • Auxiliary Power: 12 Volts DC
  • Axle Oscillation: 0 in. / 0 mm
  • Capacity – Fuel Tank: 40 gal. / 151.42 L
  • Capacity – Hydraulic Reservoir: 32 gal. / 121.13 L
  • Drive Speed – 4WD: 1.60 mph / 2.57 km/h
  • Engine Type – Diesel: DEUTZ TD 2.9L Tier 4 Final 67 hp
  • Gradeability – 4WD: 55 %
  • Ground Clearance: 1 ft 3 in. / 0.38 m
  • Horizontal Jib Rotation: 0 Degrees
  • Horizontal Outreach: 56 ft 9 in. / 17.3 m
  • Jib – Range of articulation: 132 Degrees
  • Machine Height: 8 ft 5 in. / 2.57 m
  • Machine Length: 33 ft 6 in. / 10.21 m
  • Machine Weight: 27100 lb / 12292.35 kg
  • Machine Width: 8 ft 2 in. / 2.49 m
  • Platform Capacity – Unrestricted: 500 lb / 226.80 kg
  • Platform Dimension A: 3 ft / 0.91 m
  • Platform Dimension B: 8 ft / 2.44 m
  • Platform Height: 66 ft 8 in. / 20.32 m
  • Platform Height: 66 ft 8 in. / 20.32 m
  • Swing: 360 Degrees
  • Swing Type: Continuous
  • Tailswing: 3 ft 8 in. / 1.12 m
  • Track Width: 1 ft 8 in. / 0.51 m
  • Turning Radius – Outside: 0 in. / 0 mm
Details

When you’ve got to work around different angles and crowded job sites, you need the right piece of equipment that gets you straight to the source. JLG engine powered telescopic boom lifts are ideal for work that requires maximum horizontal and vertical outreach. Our telescopic boom lifts take you right where you need to work while providing you with the height and capacity you need.

Equipment Type
Aerial Equipment / Telescopic Boom Lifts
