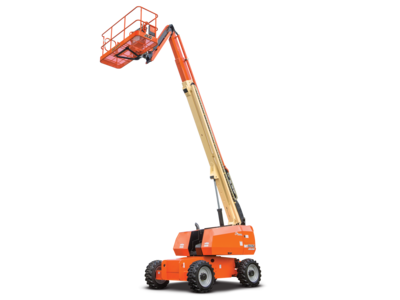

JLG 660SJ

  Back to Inventory
  • Best selling 60 ft boom lifts
  • Select from 2 models
  • Easy-to-use platform controls reduce operator training time
  • Equipped with a fuel-efficient Tier 4 engine
  • Auxiliary Power: 12 Volts DC
  • Axle Oscillation: 8 in. / 0.2 m
  • Capacity – Fuel Tank: 40 gal. / 151.42 L
  • Capacity – Hydraulic Reservoir: 32 gal. / 121.13 L
  • Drive Speed – 2WD: 4.25 mph / 6.84 km/h
  • Drive Speed – 4WD: 4.25 mph / 6.84 km/h
  • Engine Type – Diesel: DEUTZ TD 2.9L Tier 4 Final 67 hp
  • Engine Type – Dual Fuel: GM Vortec 3000 MPR 82 hp
  • Gradeability – 2WD: 30 %
  • Gradeability – 4WD: 45 %
  • Ground Clearance: 1 ft / 0.3 m
  • Horizontal Jib Rotation: 0 Degrees
  • Horizontal Outreach: 56 ft 9 in. / 17.3 m
  • Jib – Range of articulation: 132 Degrees
  • Machine Height: 8 ft 5 in. / 2.56 m
  • Machine Length: 35 ft 8 in. / 10.87 m
  • Machine Weight: 26650 lb / 12088.24 kg
  • Machine Width: 8 ft 2 in. / 2.49 m
  • Platform Capacity – Unrestricted: 500 lb / 226.80 kg
  • Platform Dimension A: 3 ft / 0.91 m
  • Platform Dimension B: 8 ft / 2.44 m
  • Platform Height: 66 ft 8 in. / 20.32 m
  • Platform Height: 66 ft 8 in. / 20.32 m
  • Swing: 360 Degrees
  • Swing Type: Continuous
  • Tailswing: 3 ft 9 in. / 1.14 m
  • Tire Size: 39 x 15-22.5 Lug Tread
  • Turning Radius – Outside (2WS): 17 ft 7 in. / 5.36 m
  • Turning Radius – Outside (4WS): 9 ft 6 in. / 2.9 m
Details

When you’ve got to work around different angles and crowded job sites, you need the right piece of equipment that gets you straight to the source. JLG engine powered telescopic boom lifts are ideal for work that requires maximum horizontal and vertical outreach. Our telescopic boom lifts take you right where you need to work while providing you with the height and capacity you need.

Equipment Type
Aerial Equipment / Telescopic Boom Lifts
