JLG 600S

  Back to Inventory
  • Equipped with a fuel-efficient Tier 4 engine
  • Best selling 60 ft boom lifts
  • Select from 2 models
  • Easy-to-use platform controls reduce operator training time
  • Auxiliary Power: 12 Volts DC
  • Axle Oscillation: 8 in. / 0.2 m
  • Capacity – Fuel Tank: 40 gal. / 151.42 L
  • Capacity – Hydraulic Reservoir: 32 gal. / 121.13 L
  • Drive Speed – 2WD: 4.25 mph / 6.84 km/h
  • Drive Speed – 4WD: 4.25 mph / 6.84 km/h
  • Engine Type – Diesel: DEUTZ TD 2.9L Tier 4 Final 67 hp
  • Engine Type – Dual Fuel: GM Vortec 3000 MPR 82 hp
  • Gradeability – 2WD: 30 %
  • Gradeability – 4WD: 45 %
  • Ground Clearance: 1 ft / 0.3 m
  • Horizontal Jib Rotation: 0 Degrees
  • Horizontal Outreach: 49 ft 6 in. / 15.09 m
  • Jib – Range of articulation: 0 Degrees
  • Machine Height: 8 ft 5 in. / 2.56 m
  • Machine Length: 28 ft 5 in. / 8.65 m
  • Machine Weight: 21800 lb / 9888.31 kg
  • Machine Width: 8 ft 2 in. / 2.49 m
  • Platform Capacity – Restricted: 1000 lb / 453.59 kg
  • Platform Capacity – Unrestricted: 500 lb / 226.80 kg
  • Platform Dimension A: 3 ft / 0.91 m
  • Platform Dimension B: 8 ft / 2.44 m
  • Platform Height: 60 ft 3 in. / 18.36 m
  • Platform Height: 60 ft 3 in. / 18.36 m
  • Swing: 360 Degrees
  • Swing Type: Continuous
  • Tailswing: 3 ft 9 in. / 1.14 m
  • Tire Size: 39 x 15-22.5 Lug Tread
  • Turning Radius – Outside (2WS): 17 ft 7 in. / 5.36 m
  • Turning Radius – Outside (4WS): 9 ft 6 in. / 2.9 m
Details

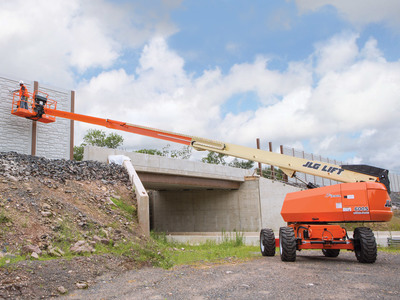

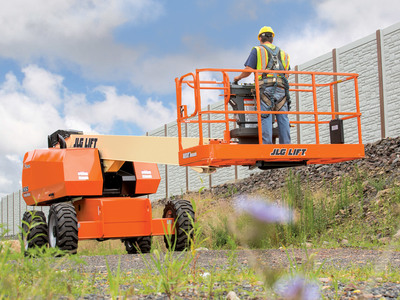

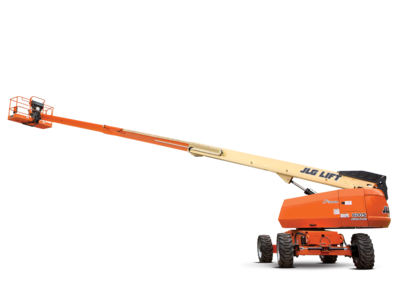

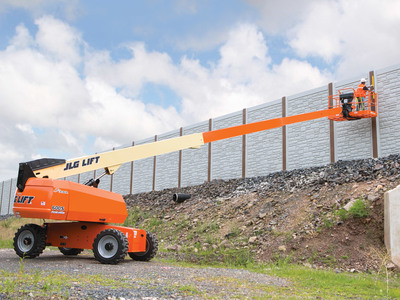

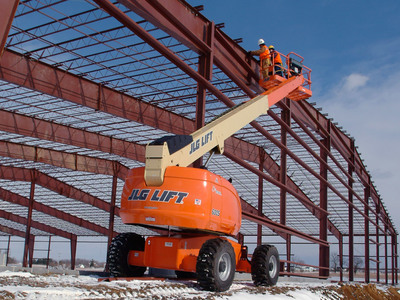

When you’ve got to work around different angles and crowded job sites, you need the right piece of equipment that gets you straight to the source. JLG engine powered telescopic boom lifts are ideal for work that requires maximum horizontal and vertical outreach. Our telescopic boom lifts take you right where you need to work while providing you with the height and capacity you need.

Equipment Type
Aerial Equipment / Telescopic Boom Lifts
