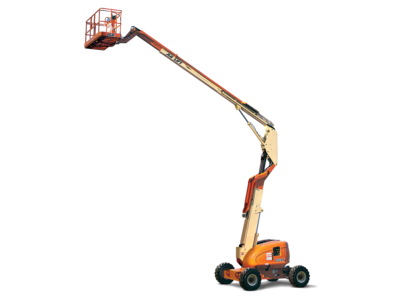

JLG 600AN Narrow

  Back to Inventory
  • Equipped with a fuel-efficient Tier 4 engine
  • Narrow chassis for confined work areas
  • Best reach envelope in its class
  • Optional articulating jib gets you into hard-to-reach places
  • Auxiliary Power: 12 Volts DC
  • Axle Oscillation: 8 in. / 0.2 m
  • Capacity – Fuel Tank: 30 gal. / 113.56 L
  • Capacity – Hydraulic Reservoir: 31 gal. / 115.83 L
  • Drive Speed – 2WD: 4.25 mph / 6.84 km/h
  • Engine Type – Diesel: DEUTZ TD 2.9L Tier 4 Final 67 hp
  • Engine Type – Dual Fuel: GM Vortec 3000 MPR, 82 hp
  • Gradeability – 2WD: 30 %
  • Ground Clearance: 1 ft / 0.3 m
  • Horizontal Jib Rotation: 0 Degrees
  • Horizontal Outreach: 39 ft 7 in. / 12.07 m
  • Jib – Range of articulation: 0 Degrees
  • Machine Height: 8 ft 4 in. / 2.54 m
  • Machine Length: 26 ft 5 in. / 8.05 m
  • Machine Weight: 24100 lb / 10931.58 kg
  • Machine Width: 7 ft / 2.13 m
  • Platform Capacity – Restricted: 1000 lb / 453.59 kg
  • Platform Capacity – Unrestricted: 500 lb / 226.80 kg
  • Platform Dimension A: 3 ft / 0.91 m
  • Platform Dimension B: 8 ft / 2.44 m
  • Platform Height: 60 ft 5 in. / 18.42 m
  • Platform Height: 60 ft 5 in. / 18.42 m
  • Swing: 360 Degrees
  • Swing Type: Continuous
  • Tailswing: 5 in. / 0.13 m
  • Tire Size: 14 x 17.5 Air Boss
  • Turning Radius – Outside (4WS): 11 ft 2 in. / 3.4 m
  • Up and Over Height: 26 ft 7 in. / 8.1 m
Details

On the job site, days are measured by productivity. Your productivity. Which means you need equipment that stands up to the day’s demands. JLG® engine powered articulating boom lifts give you the extra reach you need to work over and around obstacles on the job site. They offer exceptional outreach, high capacity, versatile performance and easy maintenance. Larger work envelopes provide you with access to those hard-to-reach places.

Equipment Type
Aerial Equipment / Articulating Boom Lifts
