JLG 1255

  Back to Inventory

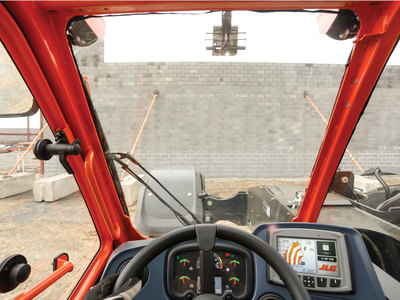

  • Greater visibility from the cab, new reverse sensing system and reversing camera options for enhanced operator confidence
  • Spacious cab, intuitive single joystick and integrated arm rest for enhanced operator comfort
  • External telescope cylinder and easily accessible filters and parts for maximum serviceability
  • Axle-Front: High Bias, Limited Slip
  • Axle-Rear: Planetary
  • Capacity – Fuel Tank: 38 gal. / 144.98 L
  • Drawbar Pull: 25400 lb / 11521.25 kg
  • Engine Horsepower: 130 hp / 96.98 kW
  • Engine Manufacturer: Cummins
  • Engine Model: QSF3.8L Tier 4 Final
  • Frame Leveling: 10 Degrees
  • Function Pump Type: Load Sensing Dual Gear
  • Ground Clearance: 1 ft 6 in. / 0.46 m
  • Lift Capacity at Full Height: 5000 lb / 2267.96 kg
  • Lift Capacity at Max Reach: 3500 lb / 1587.57 kg
  • Load Center: 2 ft / 0.61 m
  • Machine Height: 8 ft 4 in. / 2.54 m
  • Machine Length: 20 ft 1 in. / 6.12 m
  • Machine Width: 8 ft 5 in. / 2.56 m
  • Maximum Engine RPM: 1500 rpm
  • Maximum Lift Capacity: 12000 lb / 5443.11 kg
  • Maximum Lift Height: 55 ft / 16.76 m
  • Maximum Reach: 42 ft / 12.8 m
  • Operating Vehicle Weight: 33960 lb / 15404 kg
  • Outriggers or Stabilizers: Yes
  • Outriggers Up Max Forward Reach: 42 ft / 12.8 m
  • Outriggers Up Max Lift Height: 55 ft / 16.76 m
  • Outside Turning Radius: 14 ft / 4.27 m
  • Speed – Maximum Lift: 16 sec.
  • Speed – Maximum Lower: 13 sec.
  • Speed – Maximum Telescope In: 15 sec.
  • Speed – Maximum Telescope Out: 18 sec.
  • Speed – Maximum Travel: 20 mph / 32.19 km/h
  • Tire Size: 400/75-28
  • Transmission – Nr Forward Gears Standard: 4
  • Transmission – Nr Reverse Gears: 3
  • Transmission Type: Powershift
  • Wheelbase: 11 ft 6 in. / 3.49 m
Details

Comfort. Confidence. Serviceability. We wouldn’t expect you to settle for anything less with JLG telehandlers. The redesigned cab features an intuitive single joystick and an integrated arm rest so you can work in greater comfort. While the rear axle stabilization system and optional reversing camera allow for more confidence when placing loads. Tier 4 Final engines are fuel-efficient with less environmental impact. And engine parts and other serviceable components are more easily accessible—so you can spend more time on the job and less time on routine maintenance.

Equipment Type
Aerial Equipment / Telehandlers
