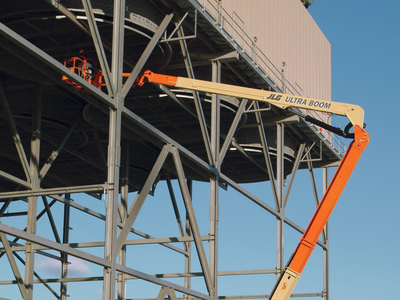

JLG 1250AJP
- Ground to 120 ft in 95 seconds
- Strong 100,000-psi steel and a dual 1,000 lb / 500 lb capacity give you stability and capacity
- Equipped with a fuel-efficient Tier 4 engine
- Auxiliary Power: 12 Volts DC
- Axle Oscillation: 8 in. / 0.2 m
- Capacity – Fuel Tank: 31 gal. / 117.35 L
- Capacity – Hydraulic Reservoir: 53 gal. / 200.63 L
- Drive Speed – 4WD: 3.25 mph / 5.23 km/h
- Engine Type – Diesel: DEUTZ TCD2.9L4 Tier 4 Final 74.2 hp
- Gradeability – 4WD: 45 %
- Ground Clearance: 1 ft / 0.3 m
- Horizontal Jib Rotation: 125 Degrees
- Horizontal Outreach: 63 ft 2 in. / 19.25 m
- Jib – Range of articulation: 130 Degrees
- Machine Height: 10 ft / 3.05 m
- Machine Length: 47 ft 6 in. / 14.48 m
- Machine Weight: 44000 lb / 19958.06 kg
- Machine Width: 8 ft 2 in. / 2.49 m
- Overall Width (Axles Extended): 12 ft 6 in. / 3.81 m
- Platform Capacity – Restricted: 1000 lb / 453.59 kg
- Platform Capacity – Unrestricted: 500 lb / 226.80 kg
- Platform Dimension A: 3 ft / 0.91 m
- Platform Dimension B: 8 ft / 2.44 m
- Platform Height: 125 ft / 38.1 m
- Platform Height: 125 ft / 38.1 m
- Swing: 360 Degrees
- Swing Type: Continuous
- Tailswing: 3 ft / 0.91 m
- Tire Size: 445/500710 Foam-Filled
- Transport Length: 37 ft 7 in. / 11.46 m
- Turning Radius – Outside (axles extended): 19 ft 4 in. / 5.89 m
- Turning Radius – Outside (axles retracted): 22 ft 6 in. / 6.86 m
- Up and Over Height: 60 ft 6 in. / 18.44 m
Details

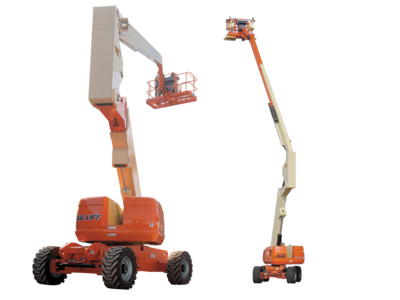

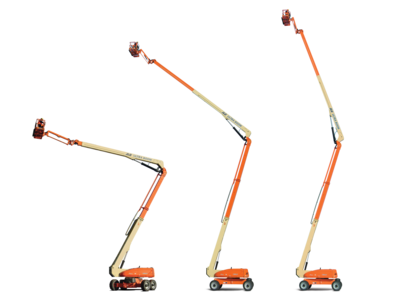

On the job site, days are measured by productivity. Your productivity. Which means you need equipment that stands up to the day’s demands. JLG® engine powered articulating boom lifts give you the extra reach you need to work over and around obstacles on the job site. They offer exceptional outreach, high capacity, versatile performance and easy maintenance. Larger work envelopes provide you with access to those hard-to-reach places.
- Equipment Type
- Aerial Equipment / Articulating Boom Lifts
