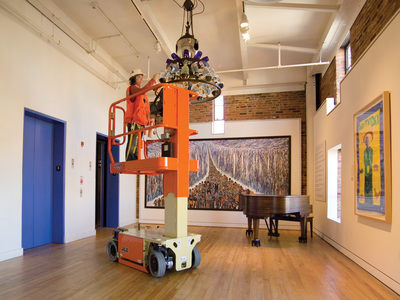

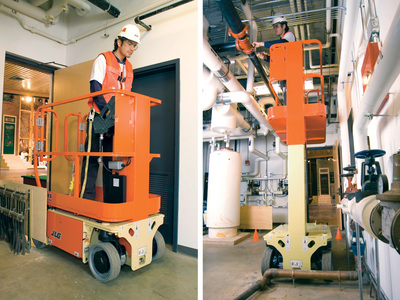

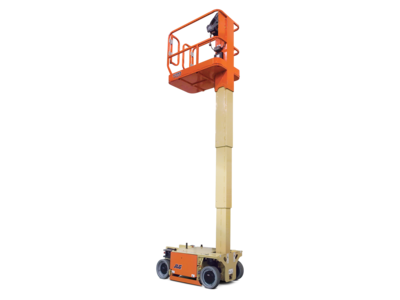

JLG 1230ES

  Back to Inventory
  • Lightweight design for transport in freight elevators
  • Low maintenance, energy efficient and environmentally clean
  • Longer running time than any lift in its class keeps you on the job longer, increasing your productivity
  • Batteries: 4 x 6V, 220 amp-hr
  • Drive Speed – Platform Elevated: 0.50 mph / 0.80 km/h
  • Drive Speed – Platform Lowered: 3 mph / 4.83 km/h
  • Drive System: 24V Electric, 8 hp
  • Gradeability: 25 %
  • Ground Clearance: 3 in. / 0.08 m
  • Ground Entry Height: 1 ft 10 in. / 0.56 m
  • Machine Height: 5 ft 5 in. / 1.65 m
  • Machine Length: 4 ft 6 in. / 1.37 m
  • Machine Weight: 1740 lb / 789.25 kg
  • Machine Width: 2 ft 6 in. / 0.76 m
  • Maximum Drive Height: 12 ft / 3.66 m
  • Maximum Lift Height: 12 ft / 3.66 m
  • Platform Capacity: 500 lb / 226.80 kg
  • Platform Dimension A: 4 ft 2 in. / 1.26 m
  • Platform Dimension B: 2 ft 3 in. / 0.69 m
  • Platform Height: 12 ft / 3.66 m
  • Platform Height: 12 ft / 3.66 m
  • Tire Size: 100 x 323 (Solid, non-marking)
  • Working Height: 18 ft / 5.49 m
Details

With innovative controls, maintenance-free components and automatic battery charging, JLG® driveable vertical mast lifts last longer and are more reliable than ever. All models run on electric power thanks to a reliable direct electric drive. They also offer ease of operation and greater maneuverability, letting you get maintenance jobs done quickly and efficiently.

Equipment Type
Aerial Equipment / Vertical Mast Lifts
