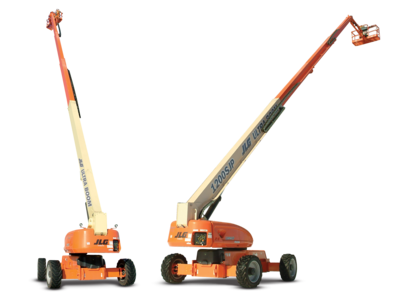

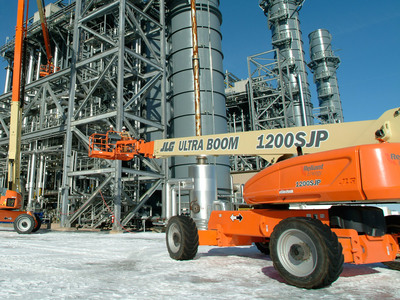

JLG 1200SJP

  Back to Inventory
  • Equipped with a fuel-efficient Tier 4 engine
  • Stability and capacity from 100,000-psi steel and a dual 1,000 / 500 lb capacity
  • Ground to 120 ft up in 95 seconds
  • Auxiliary Power: 12 Volts DC
  • Axle Oscillation: 1 ft / 0.3 m
  • Capacity – Fuel Tank: 31 gal. / 117.35 L
  • Capacity – Hydraulic Reservoir: 55 gal. / 208.20 L
  • Drive Speed – 4WD: 3.25 mph / 5.23 km/h
  • Engine Type – Diesel: DEUTZ TCD2.9L4 Tier 4 Final 74.2 hp
  • Gradeability – 4WD: 45 %
  • Ground Clearance: 1 ft / 0.3 m
  • Horizontal Jib Rotation: 180 Degrees
  • Horizontal Outreach: 75 ft / 22.86 m
  • Jib – Range of articulation: 130 Degrees
  • Machine Height: 10 ft / 3.05 m
  • Machine Length: 44 ft 10 in. / 13.67 m
  • Machine Weight: 40900 lb / 18551.93 kg
  • Machine Width: 8 ft 2 in. / 2.49 m
  • Overall Width (Axles Extended): 12 ft 6 in. / 3.81 m
  • Platform Capacity – Restricted: 1000 lb / 453.59 kg
  • Platform Capacity – Unrestricted: 500 lb / 226.80 kg
  • Platform Dimension A: 3 ft / 0.91 m
  • Platform Dimension B: 8 ft / 2.44 m
  • Platform Height: 120 ft / 36.58 m
  • Platform Height: 120 ft / 36.58 m
  • Swing: 360 Degrees
  • Swing Type: Continuous
  • Tailswing: 5 ft 6 in. / 1.68 m
  • Tire Size: 445/500710 Foam-Filled
  • Transport Length: 34 ft 10 in. / 10.62 m
  • Turning Radius – Outside (axles extended): 19 ft 4 in. / 5.89 m
  • Turning Radius – Outside (axles retracted): 22 ft 6 in. / 6.86 m
Details

When you’ve got to work around different angles and crowded job sites, you need the right piece of equipment that gets you straight to the source. JLG engine powered telescopic boom lifts are ideal for work that requires maximum horizontal and vertical outreach. Our telescopic boom lifts take you right where you need to work while providing you with the height and capacity you need.

Equipment Type
Aerial Equipment / Telescopic Boom Lifts
