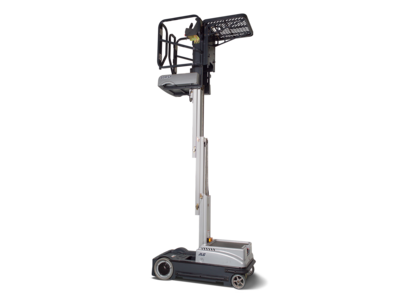

JLG 10MSP

  Back to Inventory
  • Driveable at full height for increased efficiency
  • One-hand operation for increased operator comfort
  • Zero turning radius for superior maneuverability
  • Built-in automatic charger for less downtime on the job
  • Batteries: 4 Sealed 210-amp-hr Glass Mat (AGM)
  • Drive Speed – Platform Elevated: 0.60 mph / 0.97 km/h
  • Drive Speed – Platform Lowered: 3.50 mph / 5.63 km/h
  • Drive System: 4 Brush Direct Electric
  • Gradeability: 15 %
  • Ground Clearance: 2 in. / 0.05 m
  • Ground Entry Height: 1 ft 1 in. / 0.33 m
  • Machine Height: 4 ft 8 in. / 1.42 m
  • Machine Length: 5 ft / 1.52 m
  • Machine Weight: 1100 lb / 498.95 kg
  • Machine Width: 2 ft 6 in. / 0.75 m
  • Maximum Drive Height: 10 ft / 3.05 m
  • Maximum Lift Height: 10 ft / 3.05 m
  • Platform Capacity: 350 lb / 158.76 kg
  • Platform Dimension A: 1 ft 8 in. / 0.51 m
  • Platform Dimension B: 2 ft 3 in. / 0.69 m
  • Platform Height: 10 ft / 3.05 m
  • Platform Height: 10 ft / 3.05 m
  • Wheel Size – Front Caster: 8 x 2.5
  • Wheel SIze – Rear: 12.62 x 4
  • Working Height: 16 ft / 4.88 m
Details

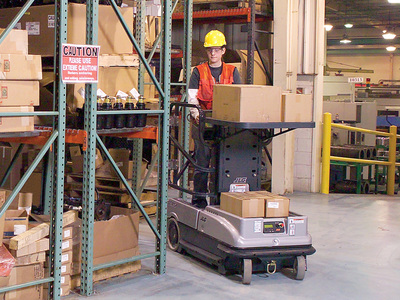

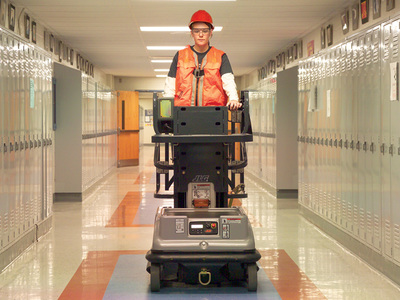

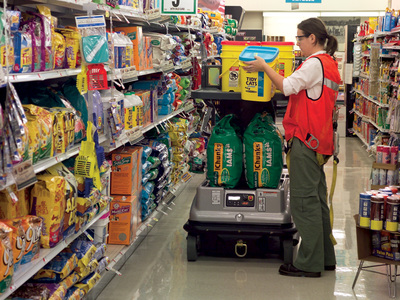

Whether you are transporting supplies, setting up displays or performing routine maintenance, the MSP Series makes your everyday tasks more efficient. Our line of stock pickers lets you carry both people and materials thanks to a flexible platform and extra-large material tray. They also feature a zero turning radius for superior maneuverability and long battery cycles for working a full shift or more.

Equipment Type
Aerial Equipment / Mobile Elevating Work Platforms
