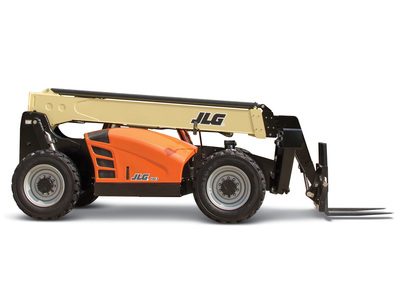

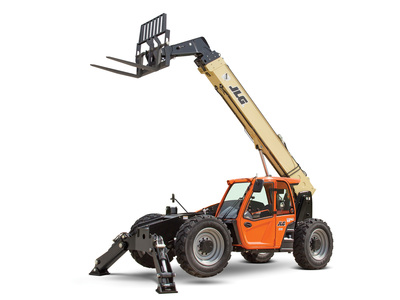

JLG 1043

  Back to Inventory
  • Greater operator confidence—Stabil-Trak rear axle stabilization, new reverse sensing system, reversing camera and better visibility from the cab
  • Enhanced operator comfort—spacious cab, intuitive single joystick and integrated arm rest
  • Maximum serviceability—external telescope cylinder and easily accessible filters and parts
  • Increased versatility—expanded attachment offering includes pipe grapple, trash hopper and material handling arm
  • Axle-Front: High Bias, Limited Slip
  • Axle-Rear: Planetary
  • Capacity – Fuel Tank: 38 gal. / 144.98 L
  • Drawbar Pull: 24912 lb / 11299.89 kg
  • Engine Horsepower: 110 hp / 82.06 kW
  • Engine Manufacturer: Cummins
  • Engine Model: QSF3.8L Tier 4 Final
  • Frame Leveling: 10 Degrees
  • Function Pump Type: Load Sensing Piston
  • Ground Clearance: 1 ft 5 in. / 0.43 m
  • Lift Capacity at Full Height: 7000 lb / 3175.15 kg
  • Lift Capacity at Max Reach: 2700 lb / 1224.70 kg
  • Load Center: 2 ft / 0.61 m
  • Machine Height: 8 ft 4 in. / 2.54 m
  • Machine Length: 19 ft 9 in. / 6.02 m
  • Machine Width: 8 ft 1 in. / 2.46 m
  • Maximum Engine RPM: 1500 rpm
  • Maximum Lift Capacity: 10000 lb / 4535.92 kg
  • Maximum Lift Height: 43 ft / 13.11 m
  • Maximum Reach: 30 ft 5 in. / 9.27 m
  • Operating Vehicle Weight: 26235 lb / 11900 kg
  • Outriggers or Stabilizers: Yes
  • Outriggers Up Lift Capacity Full Height: 7000 lb / 3175.15 kg
  • Outriggers Up Lift Capacity Full Reach: 1100 lb / 498.95 kg
  • Outriggers Up Max Forward Reach: 30 ft 5 in. / 9.27 m
  • Outriggers Up Max Lift Height: 43 ft / 13.11 m
  • Outside Turning Radius: 12 ft / 3.66 m
  • Service Brake Type: Wet Multi-Disc
  • Speed – Maximum Lift: 13 sec.
  • Speed – Maximum Lower: 9 sec.
  • Speed – Maximum Telescope In: 13 sec.
  • Speed – Maximum Telescope Out: 15 sec.
  • Speed – Maximum Travel: 19 mph / 30.58 km/h
  • Tire Size: 400/75-28
  • Transmission – Nr Forward Gears Standard: 4
  • Transmission – Nr Reverse Gears: 3
  • Transmission Type: Powershift
  • Wheelbase: 11 ft 3 in. / 3.43 m
Details

Comfort. Confidence. Serviceability. We wouldn’t expect you to settle for anything less with JLG telehandlers. The redesigned cab features an intuitive single joystick and an integrated arm rest so you can work in greater comfort. While the rear axle stabilization system and optional reversing camera allow for more confidence when placing loads. Tier 4 Final engines are fuel-efficient with less environmental impact. And engine parts and other serviceable components are more easily accessible—so you can spend more time on the job and less time on routine maintenance.

Equipment Type
Aerial Equipment / Telehandlers
