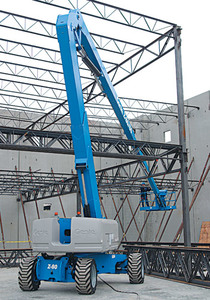

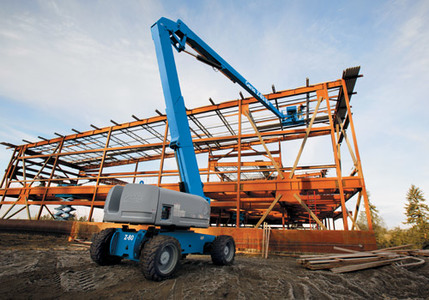

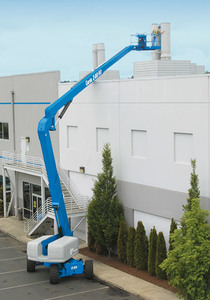

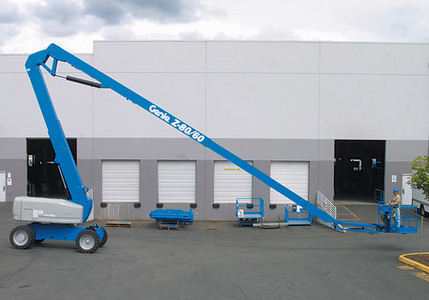

Genie Z™-80/60
- Reverse-articulating secondary boom with 29 ft (8.83 m) of up and over reach and zero front arm swing
- Quiet diesel engine options for increased performance, gradeability and terrainability
- Full-time positive traction and full-time 4WD (4WD models) for a smooth ride on rough ground conditions
- Smooth, precise, fully proportional platform controls with ramp up/down feature
- Steel 6 or 8 ft (1.83 or 2.44 m) platform with up to 500 lb (227 kg) lift capacity
- 360° continuous turntable rotation for fast, easy positioning
- Platform hydraulically rotates 160? and stays level throughout the entire range of motion
- Genie® Fast Mast™ system lowers the platform to the ground without having to lower the secondary boom; raises primary and secondary booms simultaneously
- Dual fuel (Gas/LPG) or diesel engine options
- Horizontal Reach: 60 ft (18.29 m)
- Horizontal Reach: 60 ft (18.29 m)
- Lift Capacity: 500 lbs (227 kg)
- Up & Over Clearance: 29 ft (8.83 m)
- Up & Over Clearance: 29 ft (8.83 m)
- Width: 8 ft 2 in (2.49 m)
- Working Height*: 84 ft (25.77 m)
- Working Height*: 84 ft (25.77 m)
Details
Ideal for outdoor construction and industrial applications Genie® engine-powered articulating Z™ booms provide lifting versatility with a combination of up, out and over positioning capabilities and outreach that’s second to none.
- Ideal for outdoor construction and industrial applications
- Tight turning radius and zero tailswing on most models for maneuvering in confined areas
- High ground clearance, two- or four-wheel drive and rough terrain features available
- Quiet diesel engine options deliver excellent power, torque, gradeability and terrainability
- Full-time positive drive traction system and active oscillating axle (most models) for traction on rough terrain
- Self-leveling platform rotates 90° to either side on non-jib models
- Jib boom models available for extra working range
- Equipment Type
- Articulating Boom Lifts / Aerial Equipment
