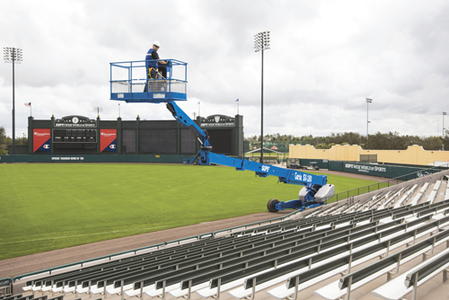

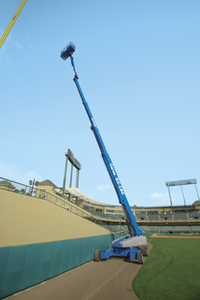

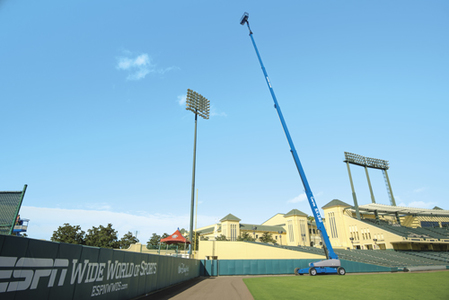

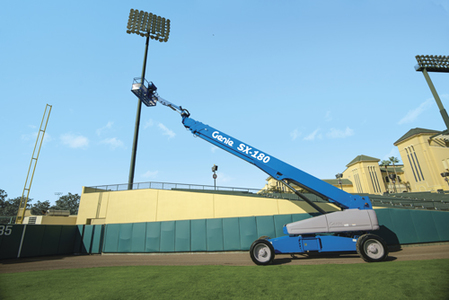

Genie SX-180
- 10 ft (3.05 m) rotating jib positions workers and gear exactly where they are needed
- Newly designed X-chassis extends and retracts to provide both stability on the job and a narrow profile for transport
- Hydraulic platform rotation of 160°
- Designed to be productive, reliable and easy to transport
- Features a working envelope ideal for the most extreme access jobs with a vertical reach of 180 ft (54.9 m) and horizontal reach of 80 ft (24.4 m)
- Standard 8 ft (2.44 m) self-leveling platform with an unrestricted capacity of 750 lb (340 kg)
- Drive enable at full height
- Easily transported on a truck with no over width or over height permits required
- Below Ground Reach: 2 ft (0.61 m)
- Horizontal Reach: 80 ft (24.38 m)
- Horizontal Reach: 80 ft (24.38 m)
- Lift Capacity: 750 lb (340 kg)
- Lift Capacity: 750 lb (340 kg)
- Platform Height: 180 ft (54.86 m)
- Working Height **: 186 ft (56.69 m)
- Working Height*: 186 ft (56.69 m)
Details
Telescopic booms offer greater horizontal outreach than any other type of aerial platform — perfect for areas with limited access in construction and industrial applications. Genie® telescopic S™-booms are also designed for productivity with the traction and drive speed you need to get around the job site and to the work area.
- Ideal for areas with limited access in construction and industrial applications
- Minimal tailswing for maneuvering in tight spaces
- Dual-fuel (gas or LPG) options available for indoor/outdoor applications
- Designed for productivity with the traction and drive speed you need
- Super Boom models with horizontal outreach among the industry’s best
- Equipment Type
- Aerial Equipment / Telescopic Boom Lifts
