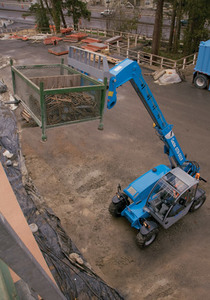

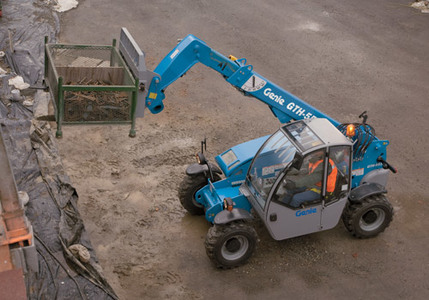

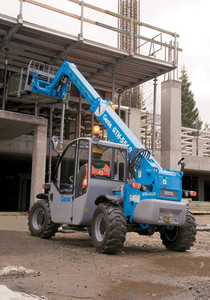

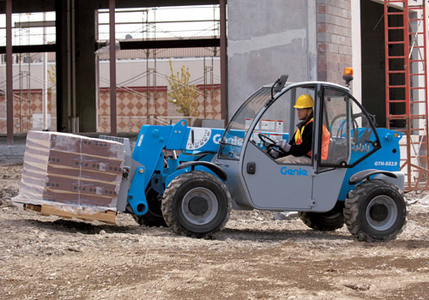

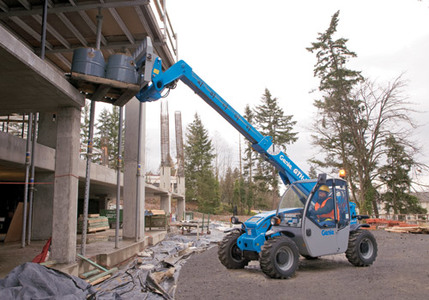

Genie GTH™-5519
- Proportional, reversible, continuous auxiliary hydraulic flow
- Comfortable, spacious cab with tilt steering and ergonomic controls
- Variable-speed hydrostatic drive
- Power-assisted steering
- ROPS/FOPS canopy (ISO compliant), retractable seat belt and illuminated gauge and switch panels
- Easy-to-use, multifunction joystick control for precise positioning
- Full-time planetary four-wheel drive and four-wheel steer
- Two diesel engine options available
- Manual Genie Quick-Attach™ system for attachments
- Forward Reach: 11 ft (3.35 m)
- Lift Capacity: 5,500 lbs (2,500 kg)
- Lifting Height: 19 ft (5.79 m)
- Maximum Forward Reach: 11 ft (3.35 m)
- Maximum Lift Capacity: 5,500 lbs (2,500 kg)
- Maximum Lift Height: 19 ft (5.79 m)
- Power Source: Perkins 804D-33 4 cylinder diesel 63 hp (47.0 kW) Deutz D 2011 4 cylinder diesel 68 hp (50.0 kW)
- Travel Speed: 15 mph (24.1 km/h)
- Weight*: 9,800 lbs (4,450 kg)
Details
Genie® compact telehandlers
Genie compact telehandlers are the perfect choice for tasks both large and small. Easy to maneuver and convenient to service, with a variety of rugged attachments, Genie compact telehandlers meet the needs of most construction, masonry, landscape and farming applications.
- Compact footprint and low stowed height — easy to transport and maneuver
- Three selectable steering modes: front-wheel, coordinated and crab steer
- Standard auxiliary hydraulic system is easily tailored for a variety of attachments
- Interchangeable, common components for maintenance efficiency
- Simple no-tool access to daily inspection points
- Equipment Type
- Aerial Equipment / Telehandlers
